300sqmm 4 Core Aluminium - 1000m

Item Code: 23-300Al-4C-LV-SEC-SOLID-AUS-DRUM-1000

Description

0.6/1kV 300 sq mm x 4C SEC AL XLP/PVC black - solid 4C 300 sq mm solid sector Al XLPE/PVC

** Multiples of 1000m only **

Also available as cut lengths and 500m drums

Ausgrid: 185413

Data Sheet

0.6/1 (1.2) kV 300 mm² 4-Core Aluminium Solid Sector Shaped Conductor cable, which adheres to AS/NZS 4026-4 & AUSGRID Part C Specification LV Polymeric Underground Cables.

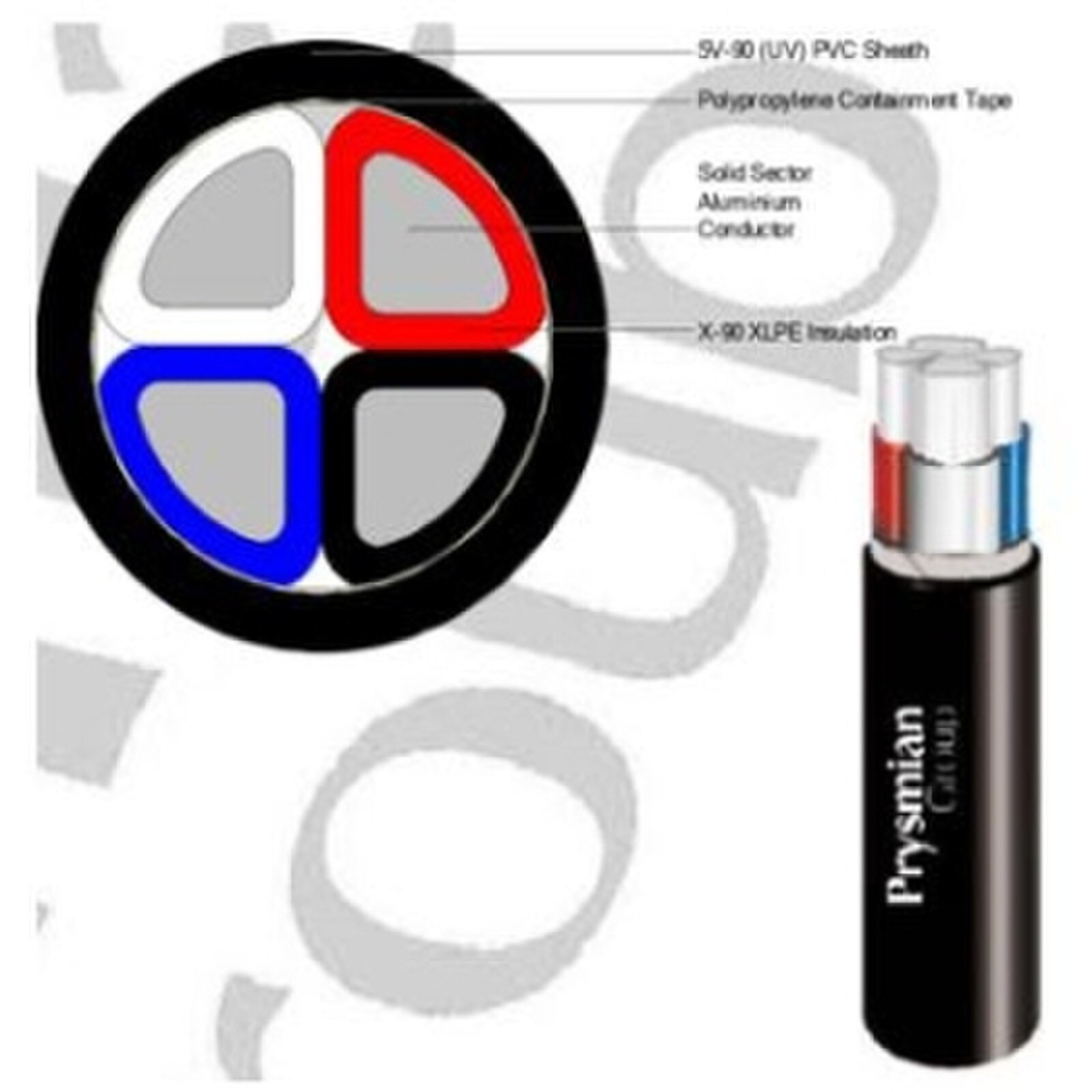

Key Physical Characteristics:

Conductor: 300 mm² Aluminium Solid Sector Shaped.
Number of Cores: 4 (Red, White, Blue, Black).
Insulation: X-90 XLPE, 1.8 mm (Min Ave) thickness.
Sheath: 5V-90 PVC (UV), 3.0 mm (Nominal) thickness.
Overall Cable Diameter: 54.5 mm (Nominal).
Cable Mass: 4,420 kg/km (Approx.).
Minimum Bending Radius: 655 mm (During Installation), 435 mm (Installed).
Max. Pulling Tension: 7.0 kN (Stocking), 25.0 kN (Conductor).

Key Electrical Characteristics:
Max. DC Resistance @ 20°C: 0.100 Ω/km.
Max. AC Resistance @ 50Hz @ 90°C: 0.130 Ω/km.
Normal Operating Temperature: 90°C.
Maximum Short Circuit Temperature: 250°C.
Three-Phase Symmetrical Fault Rating For 1 Second: 28.4 kA/1 Sec.
Continuous Current Rating: 445 A (Buried Direct, Soil @ 25°C), 375 A (Underground In Duct, Soil @ 25°C).
