CEOM7109.10 Assemblies

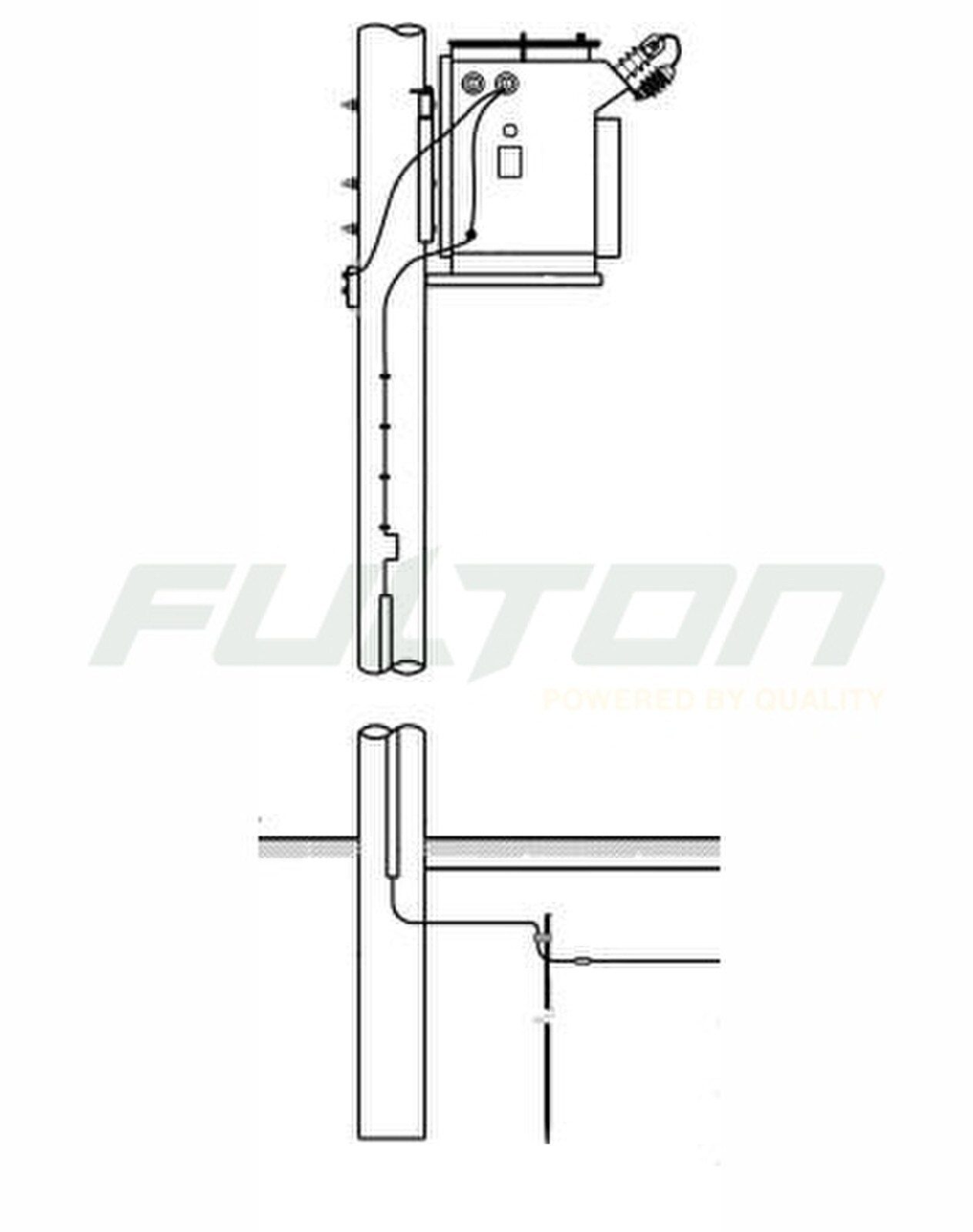

11, 22 & 33kV Wood/Composite Pole Substation Single Earthing System

Choose required option for assembly number. Item code will change when option is selected.

** THE FOLLOWING ITEMS ARE NOT INCLUDED:
Item 2: Cable (As required)
Item 6: Star Point (As required for Assy 5 & 6 only)
Item 8: Crimp Lug (As required for Assy 5 & 6 only)
Item 11: Orange Tape (As required)
Item 12: Tek Screw (As required for Assy 5 & 6 only)
Item 13: Driving Pin (As required for Assy 5 only)

**Assy 4 supplied with screws (Item 12) to suit wood pole only

Fulton Item Code information and Essential Energy Drawing:

CEOM7109.10 Assembly 4

CEOM7109.10 Assembly 5

CEOM7109.10 Assembly 6

**These assemblies are picked and packed from components that are normally in stock.
Contact us if a turnaround of less than 1-2 weeks is required to meet your schedule.
