FCB1 Series Flat Tinned Copper braid
Item Code: 05-FCB1
Description
Description

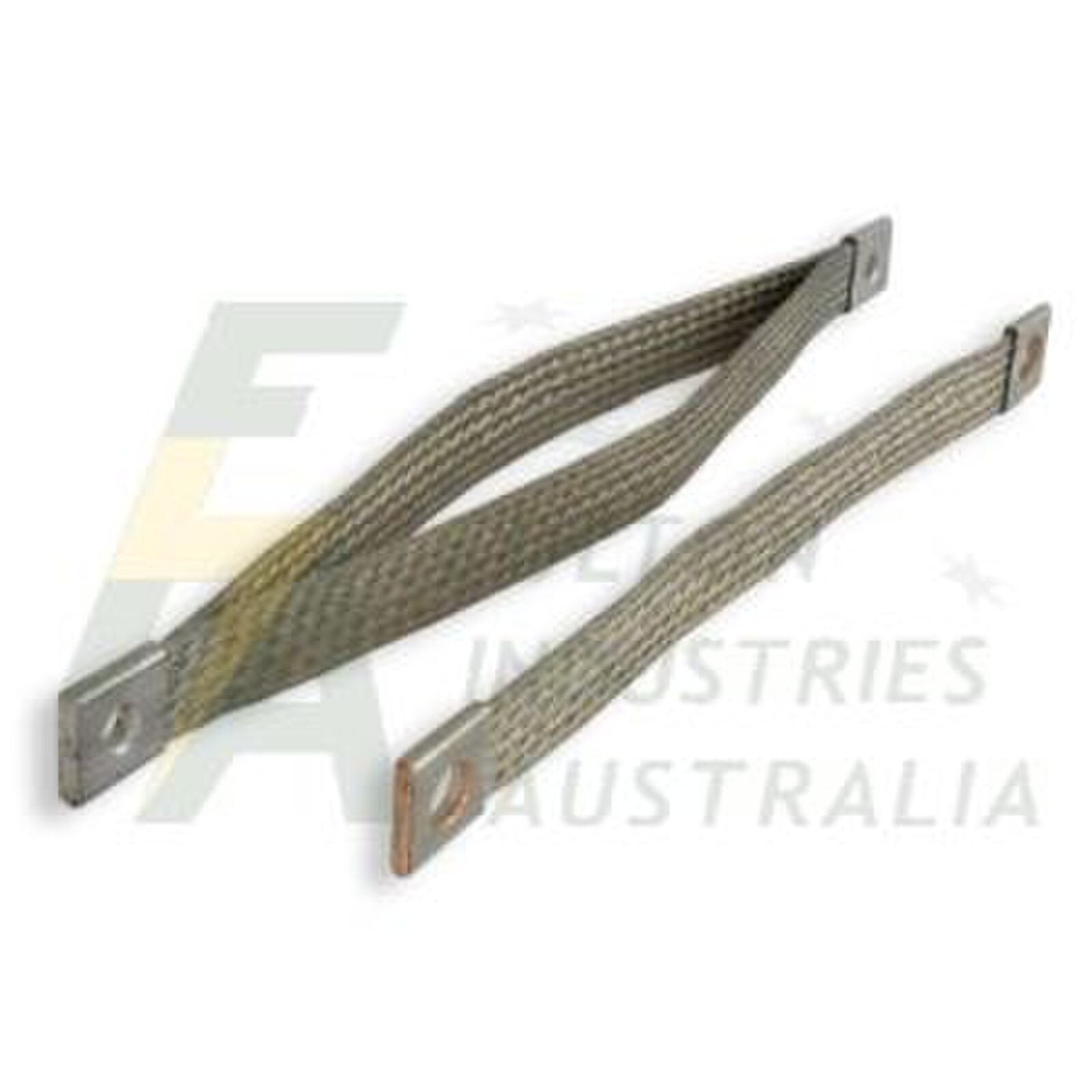

The “FCB” Flexible Copper Braids are made from single or multiple flat tinned braids. Ferrules are pressed on to each end of the braid to form flat connection plates to bolt onto busbars or terminals.
150A – Stranding – 48/10/0.25 mm, Nominal Cross Sectional Area – 25 sq mm
210A – Stranding – 48/16/0.25 mm, Nominal Cross Sectional Area – 39 sq mm
Choose required options for amp rating and length. Item code will change once all correct options are selected.
Palms (ferrules) are tinned copper with 1 x 12.5 mm diameter drilled hole centred on 25mm x 25mm palm.
Braid template to be approved prior to manufacture
**Amp ratings are calculated at 40 deg C temperature rise above 30 deg C ambient over a one metre length and are given as a guide only as the conditions of application must be considered.
## Custom made sizes available on request ##
Data Sheet
Braid Template
150A – Stranding – 48/10/0.25 mm, Nominal Cross Sectional Area – 25 sq mm
210A – Stranding – 48/16/0.25 mm, Nominal Cross Sectional Area – 39 sq mm
Choose required options for amp rating and length. Item code will change once all correct options are selected.
Palms (ferrules) are tinned copper with 1 x 12.5 mm diameter drilled hole centred on 25mm x 25mm palm.
Braid template to be approved prior to manufacture
**Amp ratings are calculated at 40 deg C temperature rise above 30 deg C ambient over a one metre length and are given as a guide only as the conditions of application must be considered.
## Custom made sizes available on request ##
Data Sheet
Braid Template
