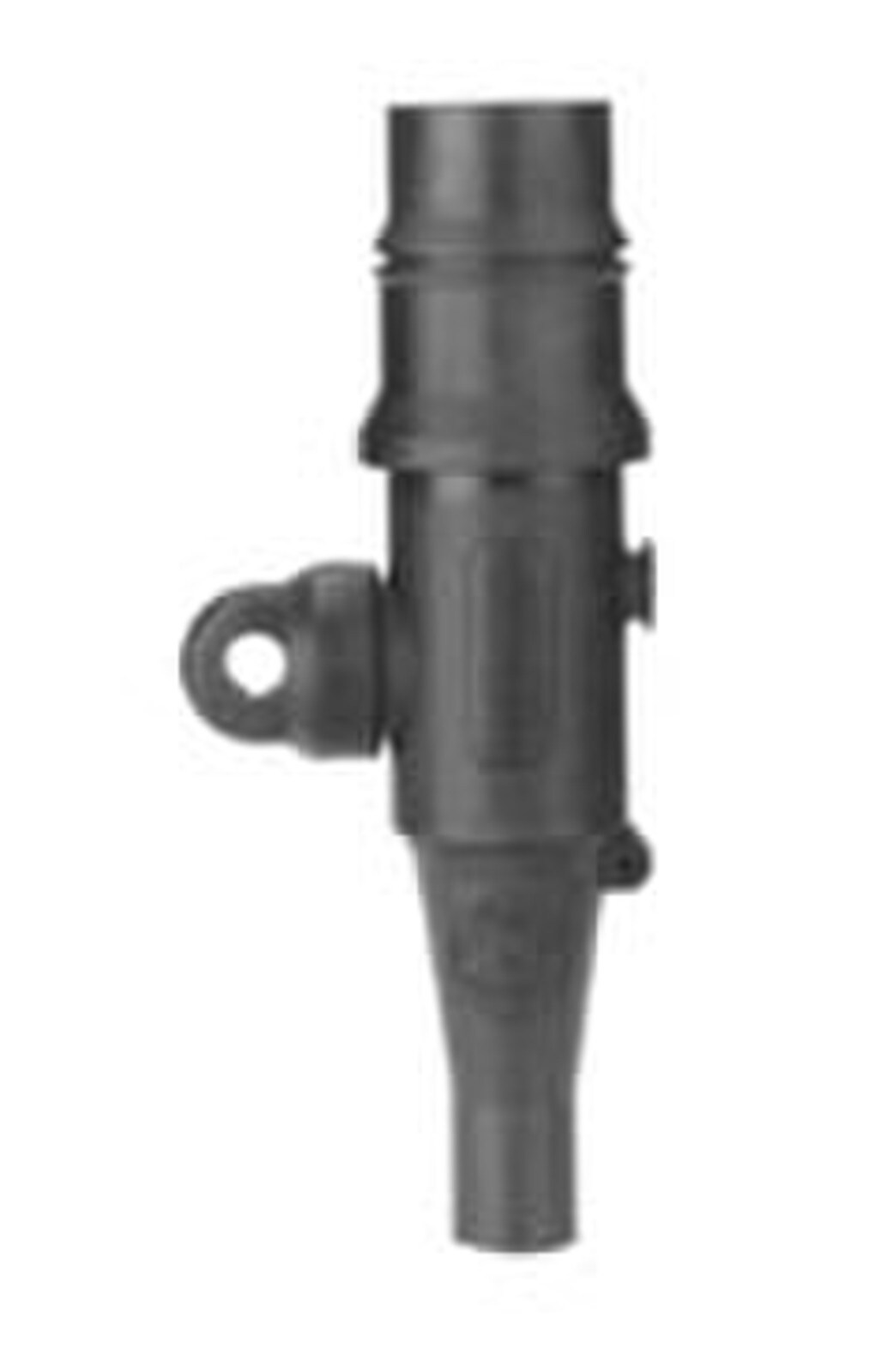

MV Screened Straight Receptacle - Interface "A" (Polymeric Cables)

    Item Code: 09-MV-RECEPT-INT-A

    Description

    Description

    Supplied / kitted by DT Jointing Solutions Pty Ltd, the 200A Interface A screened elbow and straight connector range is a world class, tried and tested solution.

    Suitable for 3C, 1C or 3 x 1C CWS XLPE Cable.

    All sizes are complete with MV crimp lugs / probes and bails to attach to bushing tabs.

    For 3 Core kits, the standard 3X1 core kit is supplied along with a trifurcation / breakout kit.

    Cable ranges are 11kV to 22kV, 25 sq mm through to 120 sq mm.

    Housings are a moulded EPDM with conducting rubber screen that controls electrical stress in one of most effective methods used in the industry.

    The EPDM is 3mm thick providing surety. No stress control mastic required.

    Complete with a capacitive test point and pulling eye.

    Price Excl. GST

    $348.14 to $1,243.38
    $348.14 to $1,243.38
