GUARD-POS-HDPE Possum guard
Item Code: 04-GUARD-POS-HDPE
Description
Description

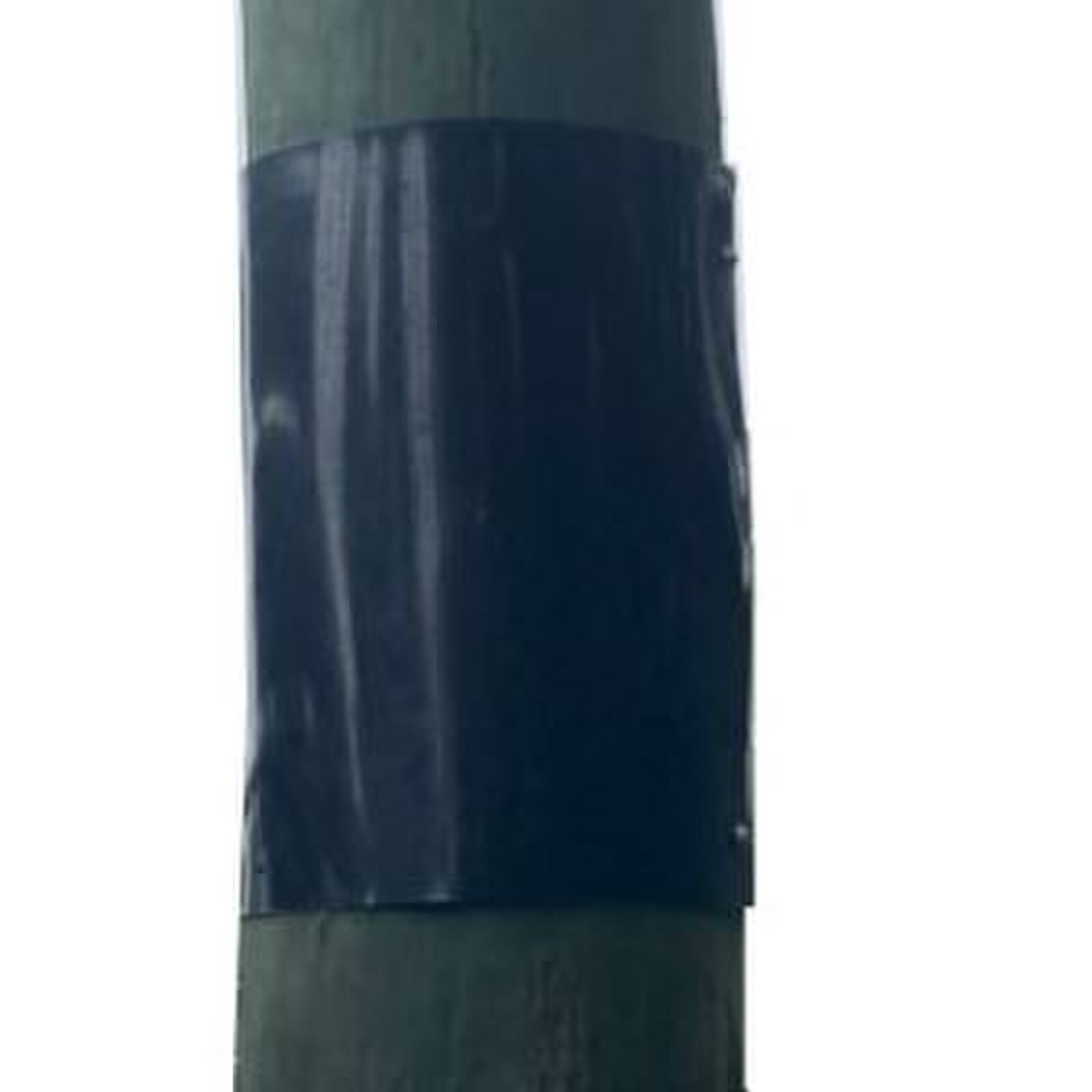

HDPE possum guard (New type replaces aluminium guard)
1200mm x 450mm
Possum guards are fitted to timber poles with overhead equipment, such as transformers and reclosers. The guard is to be mounted around the pole, over all cables and conduits and secure the guard to the pole using hex head Tek screws. The shiny side of the possum guard is to be installed inwards against the pole. The screws should be positioned 20mm from the edges of the overlap of the guard to reduce potential for cracking of the HDPE and to ensure a secure fit. Note that a second guard may be required where there is a larger pole or additional cables are already secured to the pole.
Essential Energy: 132410
1200mm x 450mm
Possum guards are fitted to timber poles with overhead equipment, such as transformers and reclosers. The guard is to be mounted around the pole, over all cables and conduits and secure the guard to the pole using hex head Tek screws. The shiny side of the possum guard is to be installed inwards against the pole. The screws should be positioned 20mm from the edges of the overlap of the guard to reduce potential for cracking of the HDPE and to ensure a secure fit. Note that a second guard may be required where there is a larger pole or additional cables are already secured to the pole.
Essential Energy: 132410
