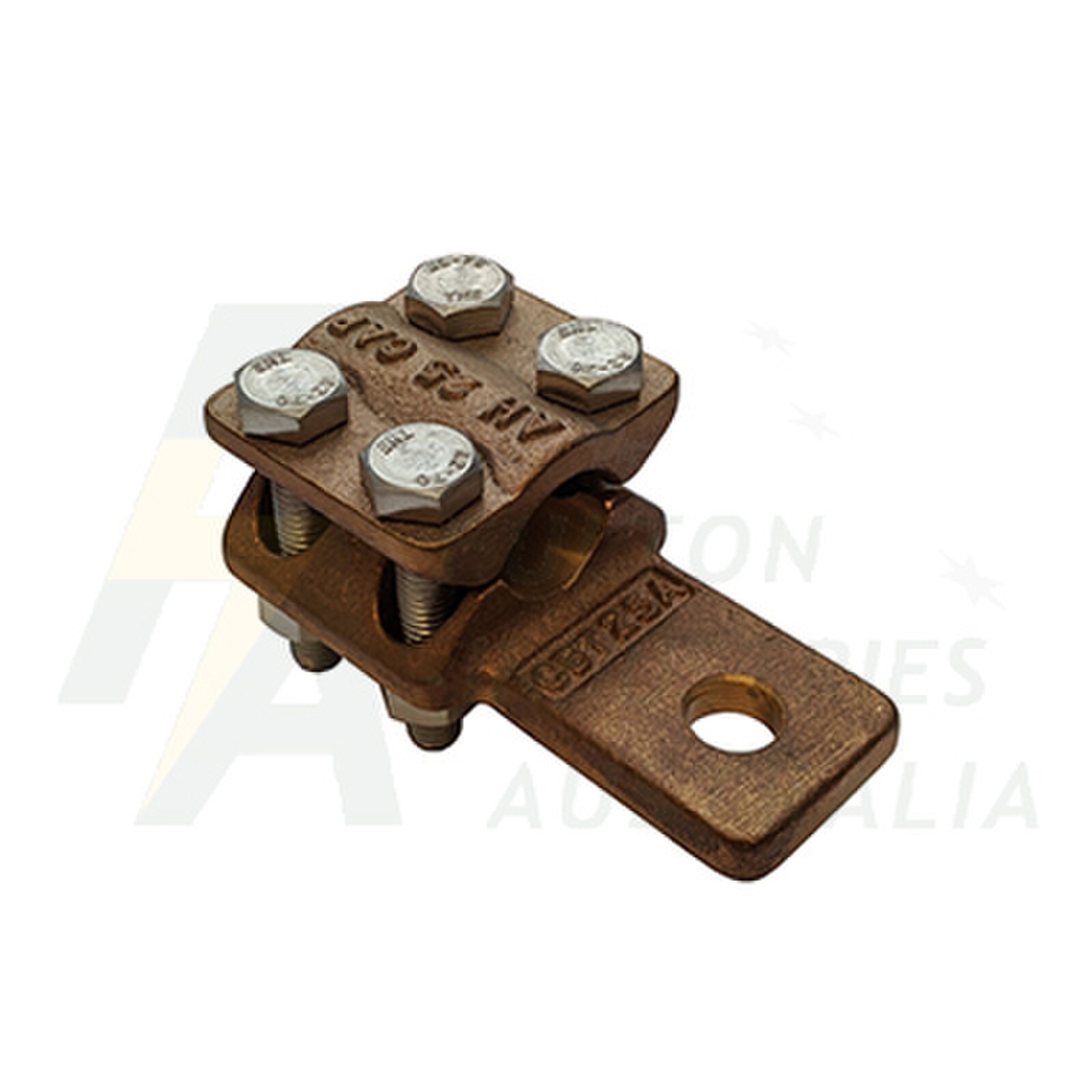

CBT Copper Terminal Lug
Item Code: 06-CBT
Description
Description
The high copper content alloy substation lug is designed for tube, from 25mm to 51mm, to flat connections. Hardware is stainless steel.
Choose required option for tube diameter and palm drill pattern.
Item code will change once correct option is selected.
Data Sheet
CBT25 Drawing
CBT25A Drawing
CBT32 Drawing
CBT33 Drawing
CBT38 Drawing
CBT46 Drawing
CBT51 Drawing
Choose required option for tube diameter and palm drill pattern.
Item code will change once correct option is selected.
| Item Code | Tube Dia (mm) |
| 06-CBT25 | 25 |
| 06-CBT25A | 25 |
| 06-CBT32 | 32 |
| 06-CBT33 | 33 |
| 06-CBT38 | 38 |
| 06-CBT46 | 46 |
| 06-CBT51 | 52 |
