CEOM7207.03

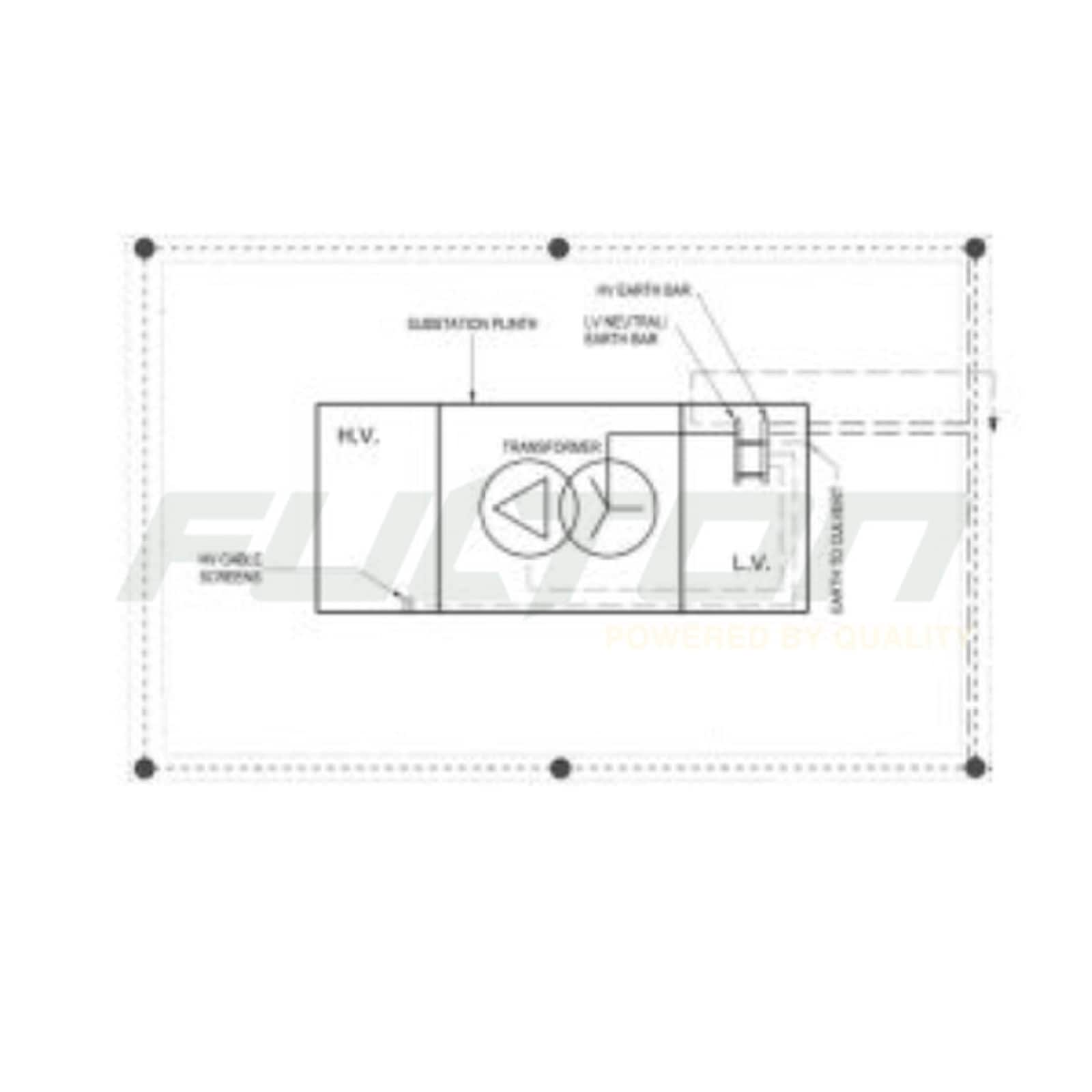

Padmount Substation Earthing Details

CMEN Earthing up to 1500kVA

** THE FOLLOWING ITEMS ARE INCLUDED:
Item 1: Earth Rod 1220mm x 6 (1.2m) or 12 (2.4m)
Item 2: C Crimp x 8
Item 3: Cable Annealed x 16m
Item 4: Cable G/Y x 6m
Item 6: Lug x 15
Item 8: Coupler x 6 (2.4m option only)

** THE FOLLOWING ITEMS ARE NOT INCLUDED:
Item 5: Driving Pin (As required)
Item 7: Tape (As required)
Item 8: Coupler (1.2m option only)
Item 9: Star Point (As required)


Fulton Item Code information and Essential Energy Drawing:

CEOM7207.03

**These assemblies are picked and packed from components that are normally in stock.
Contact us if a turnaround of less than 1-2 weeks is required to meet your schedule.
