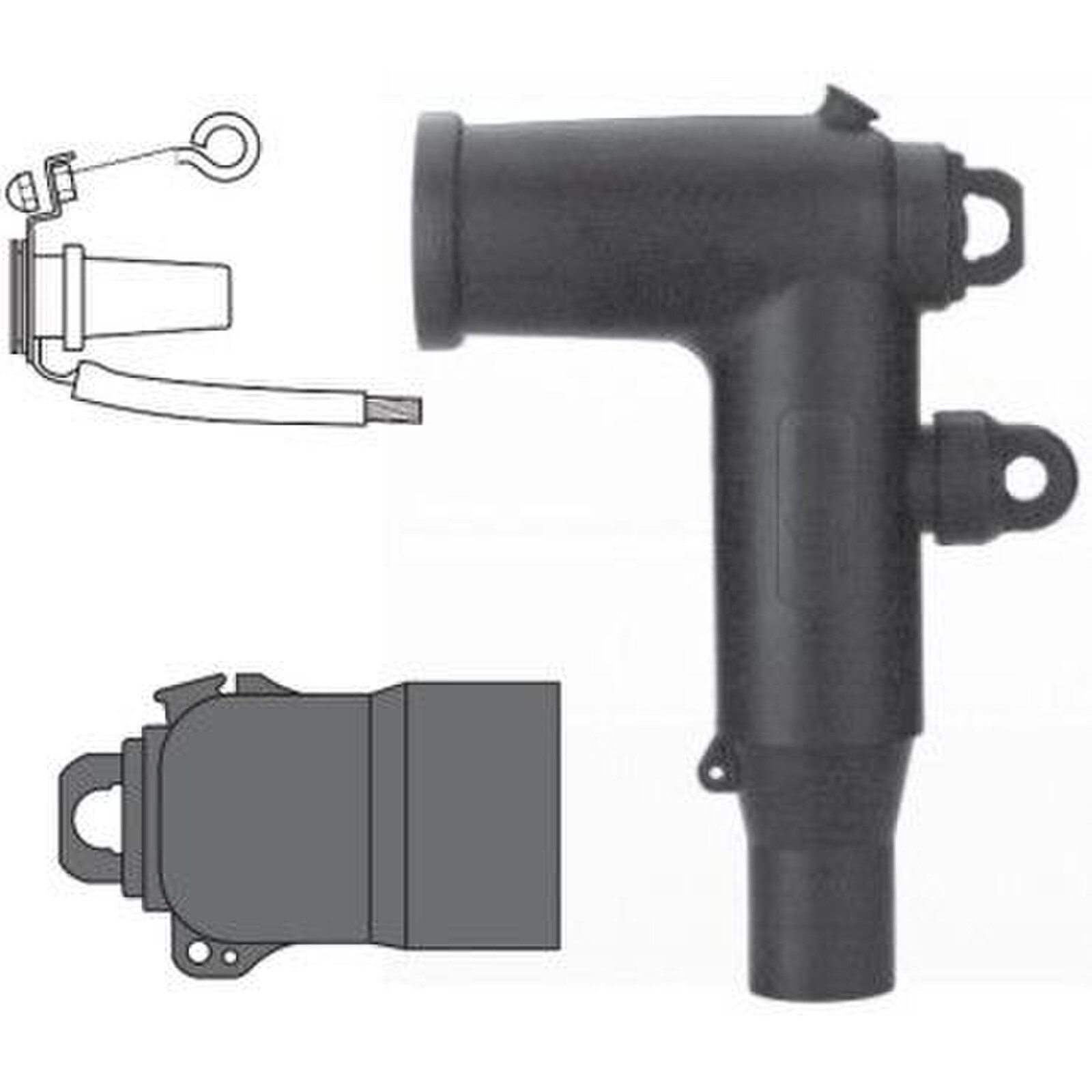

MV Screened Elbow - Interface "B" (Polymeric Cables)

    Item Code: 09-MV-ELBOW-INT-B



    Supplied / kitted by DT Jointing Solutions Pty Ltd, the 400A Interface B screened pin type elbow range is a world class, tried and tested solution.

    Suitable for 11kV through to 33kV, 3C, 1C or 3 x 1C CWS XLPE Cable.

    All sizes are complete with MV Shear lugs and bails to attach to bushing tabs.

    For 3 Core kits, the standard 3X1 core kit is supplied along with a trifurcation / breakout kit.

    Cable ranges are 11kV to 33kV, 25 sq mm through to 240 sq mm.

    There are no special tools required for terminating aside from your standard jointing tools.

    Housings are a moulded EPDM with conducting rubber screen that controls electrical stress in one of most effective methods used in the industry.

    Cable reducers / adapters are geometric in nature, still considered the most reliable and effective method available. No stress control mastic is required. The EPDM is 3mm thick providing surety.

    Elbows have a capacitive test point.

    Water sealing is completed from the housing itself, all the way to covering the screen wires.

    Fully submersible and 100% factory tested.

    It is important to check the termination is suitable for the intended application, with particular emphasis on the interface / bushing.

    Price Excl. GST

    $732.22 to $2,403.87
