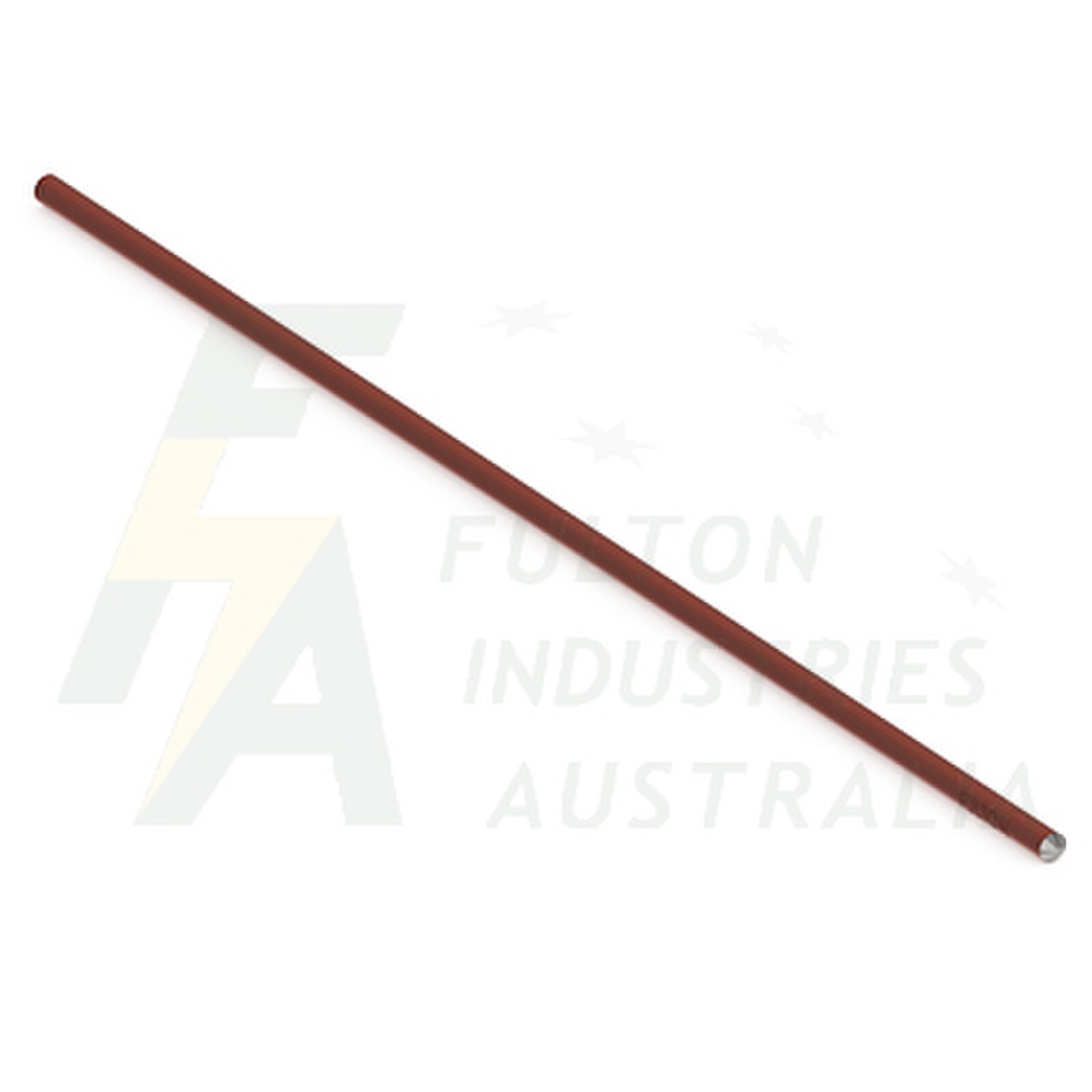

CPR19 - Copper plated earth rod 19mm dia 1800-3000mm L
Item Code: 08-CPR19
Description
Description
A range of lengths in copper plated earth rods including from 1800mm to 3000mm long
Item Code will change to reflect the complete part number once length selected from dropdown
CPR19 Copper plated 19mm nominal diameter earth rods. Short circuit tested at 19kA for 1 second. Plating thickness is 250 microns minimum as required by AS3000. Earth tags are available along with various clamps to suit different cable sizes. Some clamps suit up to three cables.
Earth rods are easily joined for deeper driving using our taper fit slimline brass couplings which have an internal centralized stopper. Couplers (joiners) are designed to provide a strong permanent and secure end to end connection between earth rods.
Data Sheet
CPR1918 Drawing
CPR1924 Drawing
CPR1930 Drawing
Item Code will change to reflect the complete part number once length selected from dropdown
CPR19 Copper plated 19mm nominal diameter earth rods. Short circuit tested at 19kA for 1 second. Plating thickness is 250 microns minimum as required by AS3000. Earth tags are available along with various clamps to suit different cable sizes. Some clamps suit up to three cables.
| Item Code | Description | Size |
| 08-CPR1918 | Copper plated steel earth rod | 19mm dia x 1800mm long |
| 08-CPR1924 | Copper plated steel earth rod | 19mm dia x 2400mm long |
| 08-CPR1930 | Copper plated steel earth rod | 19mm dia x 3000mm long |
Earth rods are easily joined for deeper driving using our taper fit slimline brass couplings which have an internal centralized stopper. Couplers (joiners) are designed to provide a strong permanent and secure end to end connection between earth rods.
Data Sheet
CPR1918 Drawing
CPR1924 Drawing
CPR1930 Drawing
