CPR15 - Copper plated earth rod 15mm dia 1500-3000mm L
Item Code: 08-CPR15
Description
Description
A range of lengths in copper plated earth rods including from 1500mm to 3000mm long
Item Code will change to reflect the complete part number once length selected from dropdown

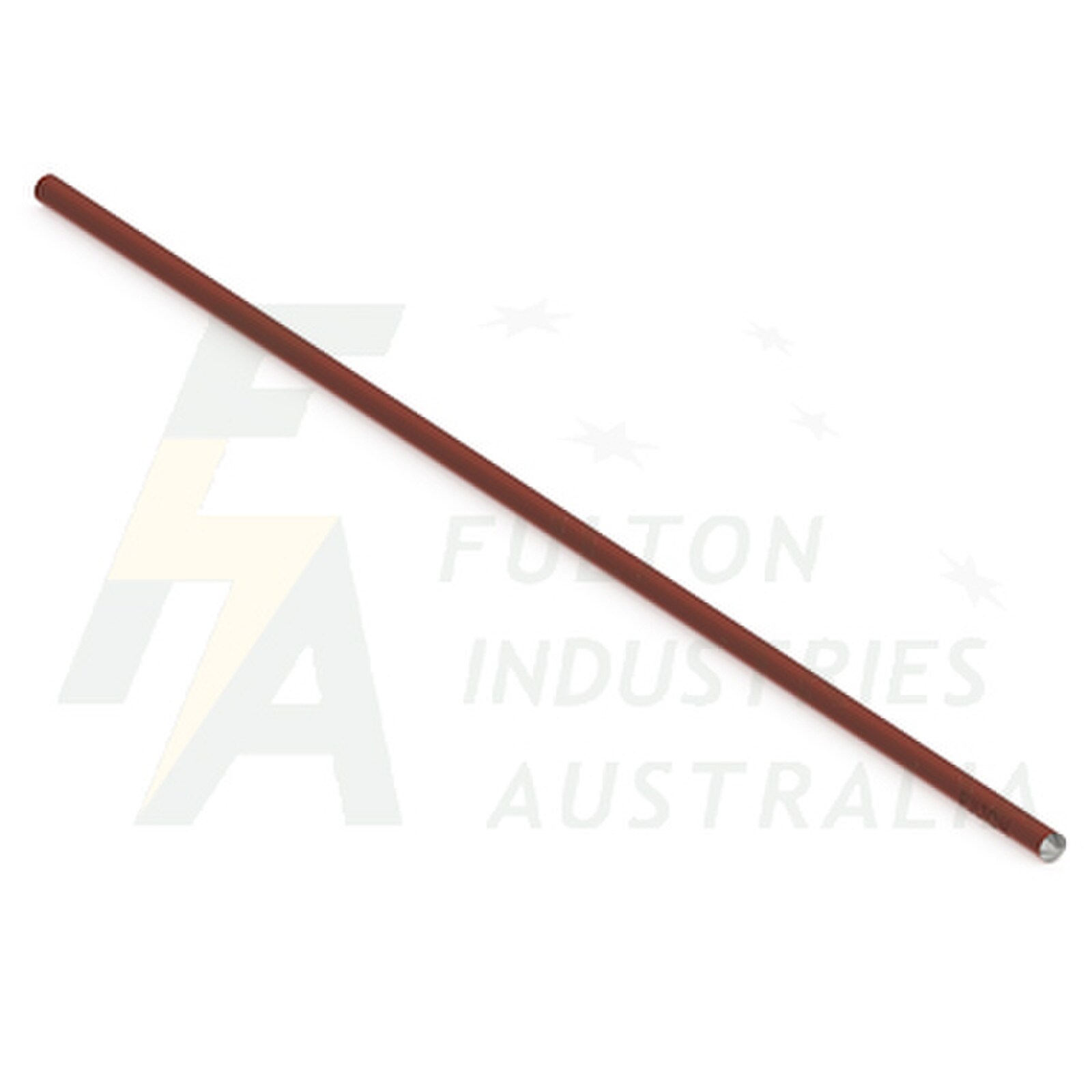

CPR15 Copper plated 15mm nominal diameter earth rods. Short circuit tested at 16kA for 1 second. Plating thickness is 250 microns minimum as required by AS3000. Earth tags are available along with various clamps to suit different cable sizes. Some clamps suit up to two cables.
Earth rods are easily joined for deeper driving using our taper fit slimline brass couplings which have an internal centralized stopper. Couplers (joiners) are designed to provide a strong permanent and secure end to end connection between earth rods.
Endeavour Energy: 1020936 (CPR1524)
Data Sheet
Drawing
Item Code will change to reflect the complete part number once length selected from dropdown
CPR15 Copper plated 15mm nominal diameter earth rods. Short circuit tested at 16kA for 1 second. Plating thickness is 250 microns minimum as required by AS3000. Earth tags are available along with various clamps to suit different cable sizes. Some clamps suit up to two cables.
| Item Code | Description | Size |
| 08-CPR1515 | Copper plated steel earth rod | 15mm dia x 1500mm long |
| 08-CPR1518 | Copper plated steel earth rod | 15mm dia x 1800mm long |
| 08-CPR1524 | Copper plated steel earth rod | 15mm dia x 2400mm long |
| 08-CPR1530 | Copper plated steel earth rod | 15mm dia x 3000mm long |
Earth rods are easily joined for deeper driving using our taper fit slimline brass couplings which have an internal centralized stopper. Couplers (joiners) are designed to provide a strong permanent and secure end to end connection between earth rods.
Endeavour Energy: 1020936 (CPR1524)
Data Sheet
Drawing
