CCS Terminal Lug
Item Code: 06-CCS
Description
Description

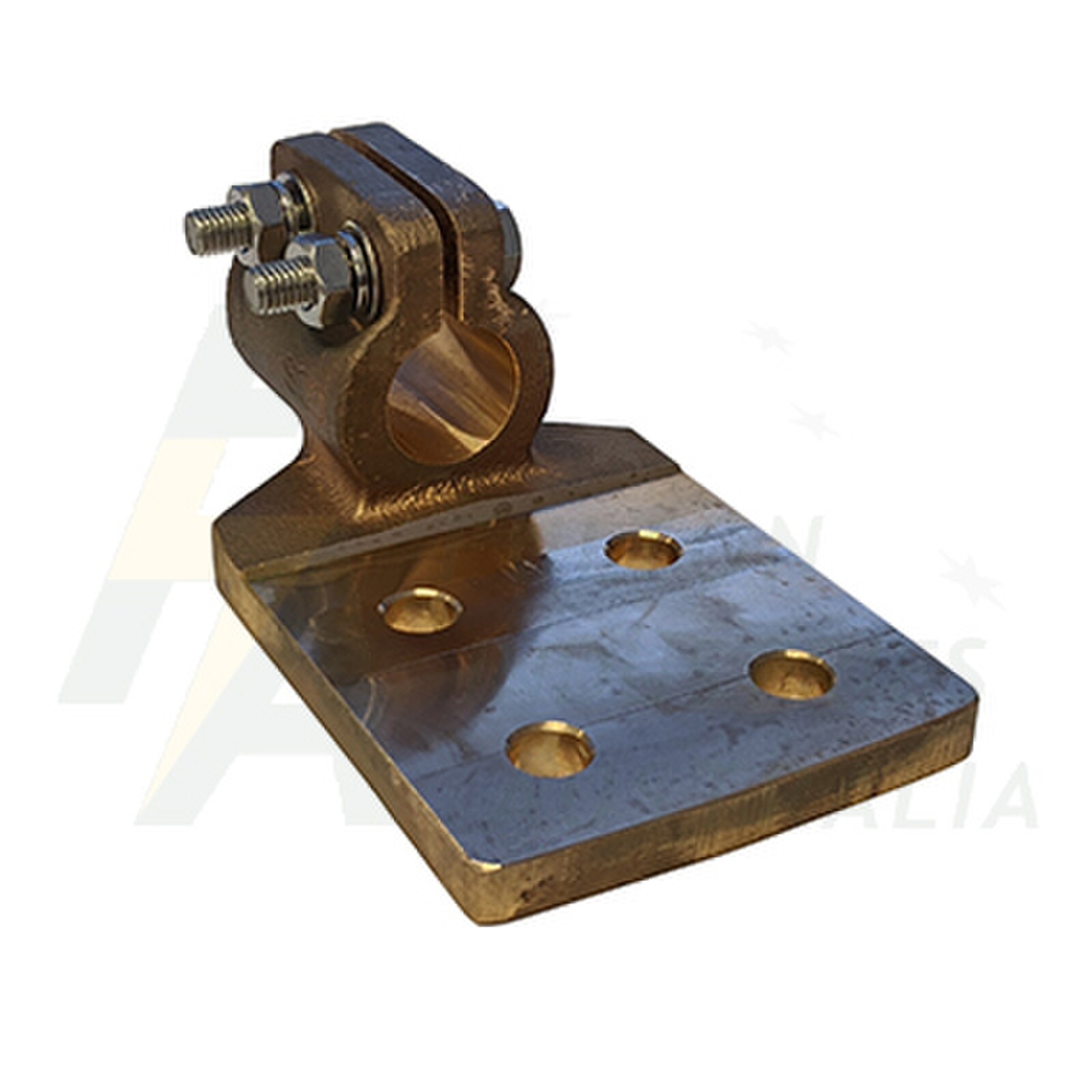

CCS substation copper terminal lugs are used for connecting cylindrical terminals or busbars to palm terminals of switchgear and suit tube diameters up to 40mm. The palm can be supplied either blank or drilled.
Castings are high copper content alloy, with an electro-tin plated option and hardware is stainless steel.
Choose required option for tube diameter, palm drill pattern and finish.
Item code will change once correct options are selected.
Data Sheet
Castings are high copper content alloy, with an electro-tin plated option and hardware is stainless steel.
Choose required option for tube diameter, palm drill pattern and finish.
Item code will change once correct options are selected.
| Item Code | Tube Dia (mm) |
| 06-CCS19 | 19.1 |
| 06-CCS25 | 25.4 |
| 06-CCS30 | 30 |
| 06-CCS32 | 31.8 |
| 06-CCS38 | 38.1 |
| 06-CCS40 | 40 |
