EP3 - Earth Plate
Item Code: 08-EP3
Description
Description

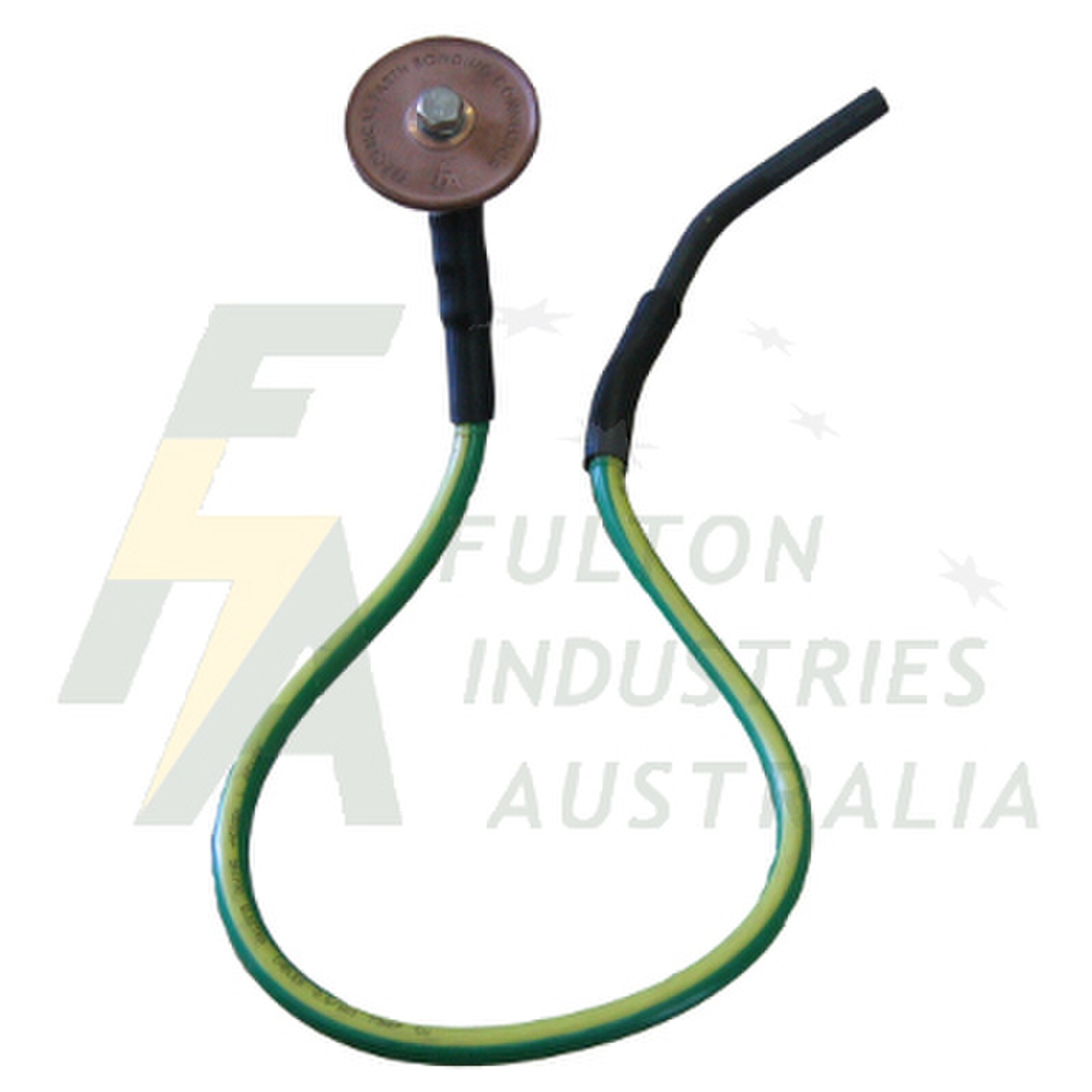

Earth plate or earth bond available with 70 sq mm, 95 sq mm or 120 sq mm G/Y cable in various lengths.
For earthing of steel reinforcement (reo) within concrete slabs of walls or floors where the steel tail is normally welded to the mesh and the cast plate is secured against the formwork during the the concrete pour. On completion the earth point is easily accessible.
(The above Item Code will change to reflect the complete part number once all three option selections have been made.)
Thread size relates to the bolt in the centre of the earth plate which allows for the attaching of a lug. Available as M10 or M12
Essential Energy: 269942 (08-EP305/70-M10 500mm 70 sq mm M10 thread)
Data Sheet
EP3 70 sq mm Drawing
EP3 95 sq mm Drawing
EP3 120 sq mm Drawing
For earthing of steel reinforcement (reo) within concrete slabs of walls or floors where the steel tail is normally welded to the mesh and the cast plate is secured against the formwork during the the concrete pour. On completion the earth point is easily accessible.
(The above Item Code will change to reflect the complete part number once all three option selections have been made.)
Thread size relates to the bolt in the centre of the earth plate which allows for the attaching of a lug. Available as M10 or M12
Essential Energy: 269942 (08-EP305/70-M10 500mm 70 sq mm M10 thread)
Data Sheet
EP3 70 sq mm Drawing
EP3 95 sq mm Drawing
EP3 120 sq mm Drawing
