PCG1500 - Poly cable guard - 1.5m
Item Code: 01-PCG1500
Description
Description

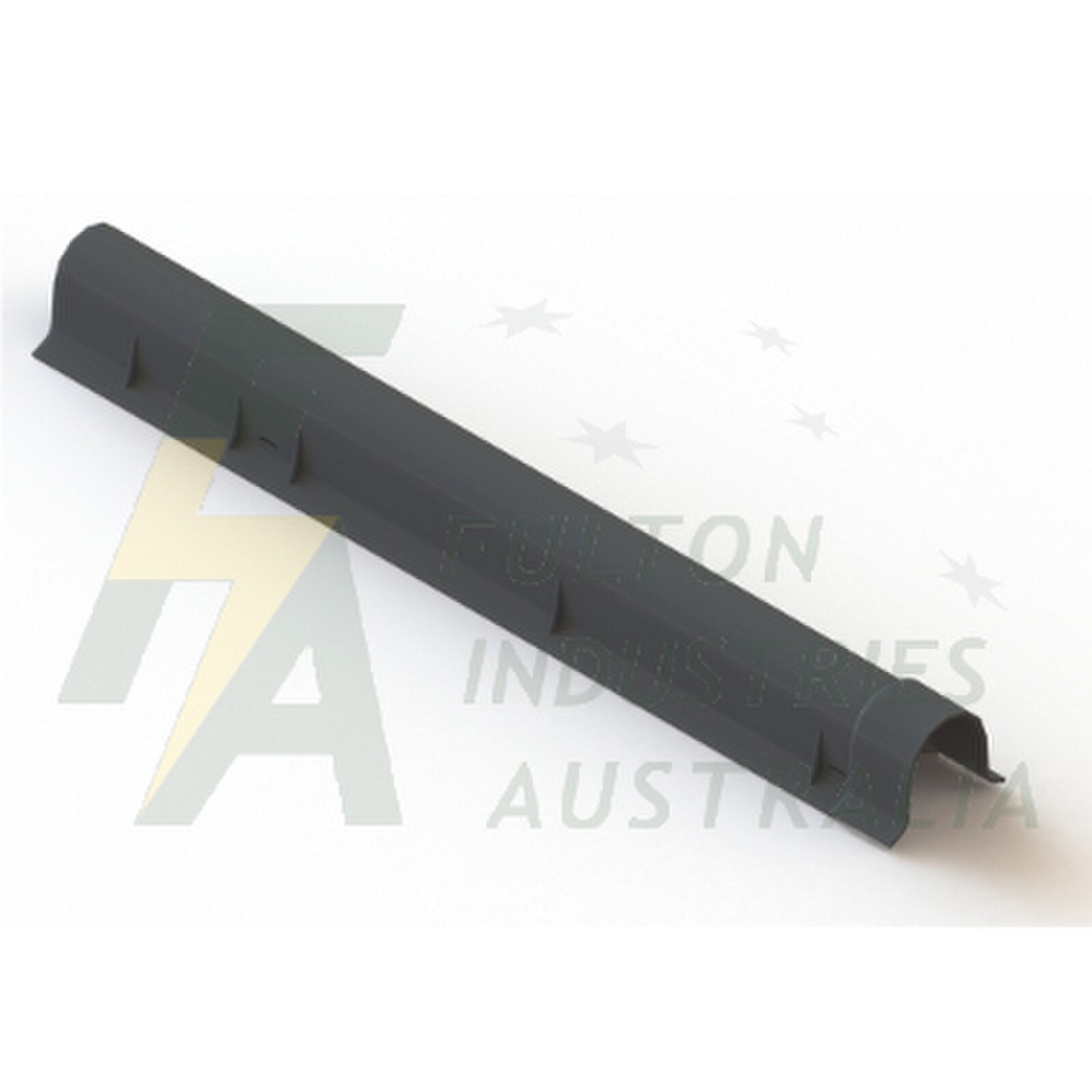

Black cable guard or pole guard is used on utility poles to cover and protect cables attached to the pole. Its use adds an extra layer of protection to conduits and cables against possible damage from impact, UV radiation and human intervention. Cable guards are manufactured from polyethylene.
They are easily extendable, with one end belled to accept the opposite end of a matching pole guard. Attaching to steel or concrete poles is achieved by using band-it type straps through pre-cut slots. Mounting to wooden poles is either by the method above or self-tapping screws through the flanges on each side.
Size: 1500 long x 213 wide x 165mm high (External)
For Essential Energy, Energex and Ergon approved cable guard see 01-PCG1500-2
Queensland Department of Transport and Main Roads approved
Ref: SD1327
TMR P/N 266 SD1699 (Two required)
Data Sheet
